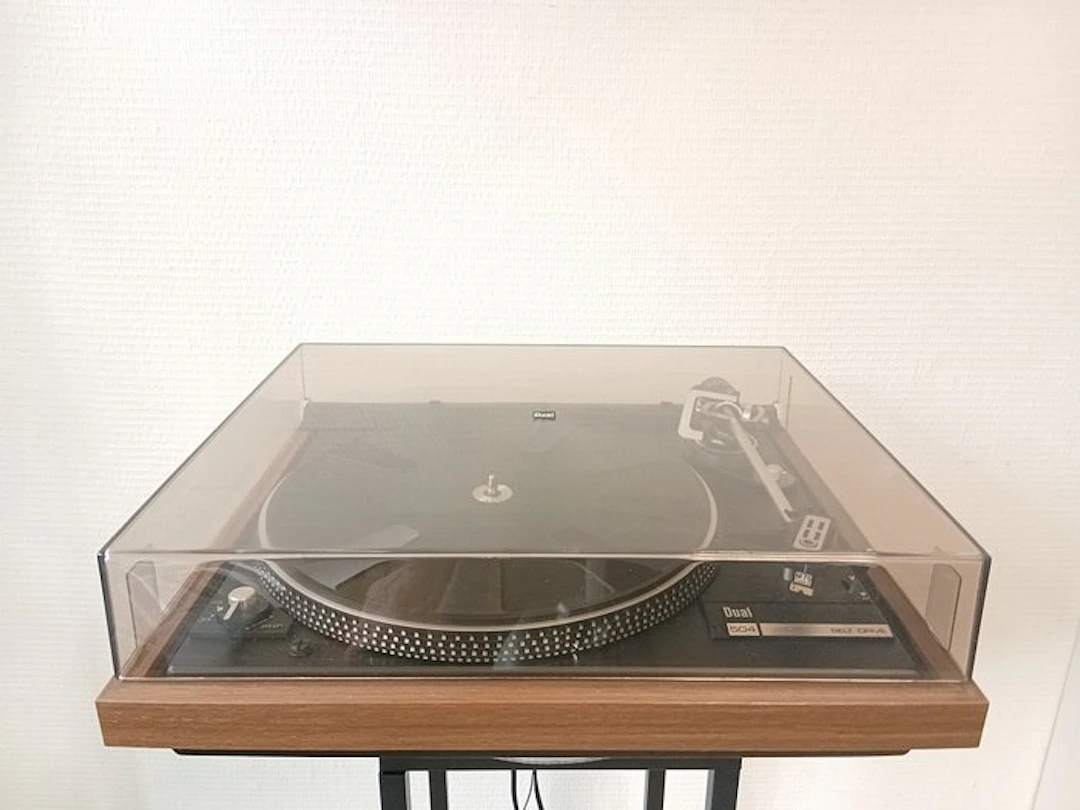

Dual - CS504 Turntable

A Dual CS504 in particularly good condition. The turntable is equipped with a new belt and has undergone a full maintenance service. It has also been provided with new lubricants where needed. The lid is virtually free of scratches. The turntable is fitted with a Shure M75 type D MM cartridge with a nearly new stylus. The tracking force has been set to 1.8 grams after thorough testing with a test record. Included is an online copy of the manual. Technical data turntable: Manufacturer: Dual. Drive: precision flat belt for flywheel drive. Motor: Dual 8-pole synchronous motor. Starting time: 2 s to 33.33 rpm. Platter: non-magnetic, dynamically balanced, detachable, 1.3 kg, 304 mm. Speeds: 33.33 and 45 rpm. Pitch control adjustment: 1 semitone (6%). Speed control: with stroboscope for all speeds. Wow and flutter: ±0.09%. Rumble: >62 dB. Tonearm: torsion-resistant tubular aluminium tonearm in four-point gimbal bearing. Effective length: 221 mm. Stylus pressure: 0-3 g. Cartridge holder: removable for 1/2" cartridges from 5.5 to 10 g. Adjustable overhang: 5 mm. Year of manufacture: 1976 - 1979. Made in: Germany. Color: Walnut, Black. Power consumption: 10 W. Dimensions: 424 x 150 x 368 mm (W x H x D). Weight: 4.1 kg. Outputs: DIN plug or RCA (Cinch) plug. Technical data cartridge: Type: MM Mounting: Dual-Klick. Output voltage: 4.0 mV at 1 kHz, 5 cm/s. Amplifier-connection: Phono MM. Frequency range: 20-20,000 Hz. Tracking force range: 2.0-3.0 g. Tracking force, recommended: 2.5 g. Recommended load resistance: 47 kΩ. Weight: 5.5 g.

Estimate:$280.05
